找到最适合您需求的EyeLink眼动仪
EyeLink 1000 Plus不仅非常适合实验室研究，而且具有高度可定制性，具有多种安装选项、可互换镜头以及头部固定和头部自由跟踪模式，允许与EEG、fMRI、MEG、ECoG、TMS、fNIR、心率和其他设备集成。EyeLink Portable Duo是一款基于屏幕的便携式眼动仪，可在实验室内外为研究提供准确和精确的数据。EyeLink 3头部和眼部跟踪器是一种全新的跟踪器，提供高速（高达1000 Hz）的凝视数据以及头部跟踪数据。请参阅下文，了解EyeLink眼动跟踪器功能的比较，如有任何疑问，请与我们联系，或索取报价。我们随时为您提供帮助。
Sampling Rate
EyeLink 1000 Plus
Up to 2000 Hz Monocular or Binocular Head Stabilized or 1000 Hz Monocular or Binocular Head Free-to-Move

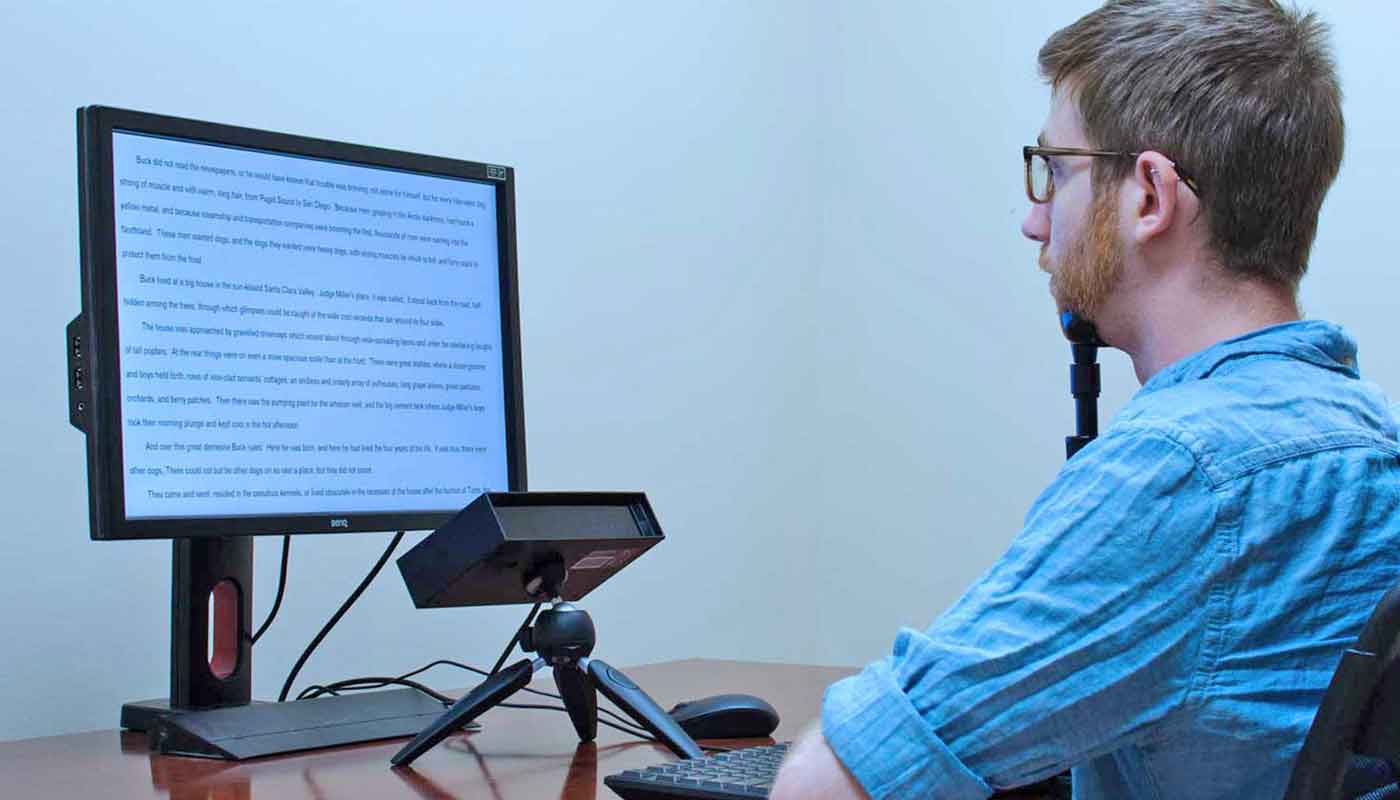

EyeLink Portable Duo
Up to 2000 Hz Monocular or Binocular Head Stabilized or 1000 Hz Monocular or Binocular Head Free-to-Move

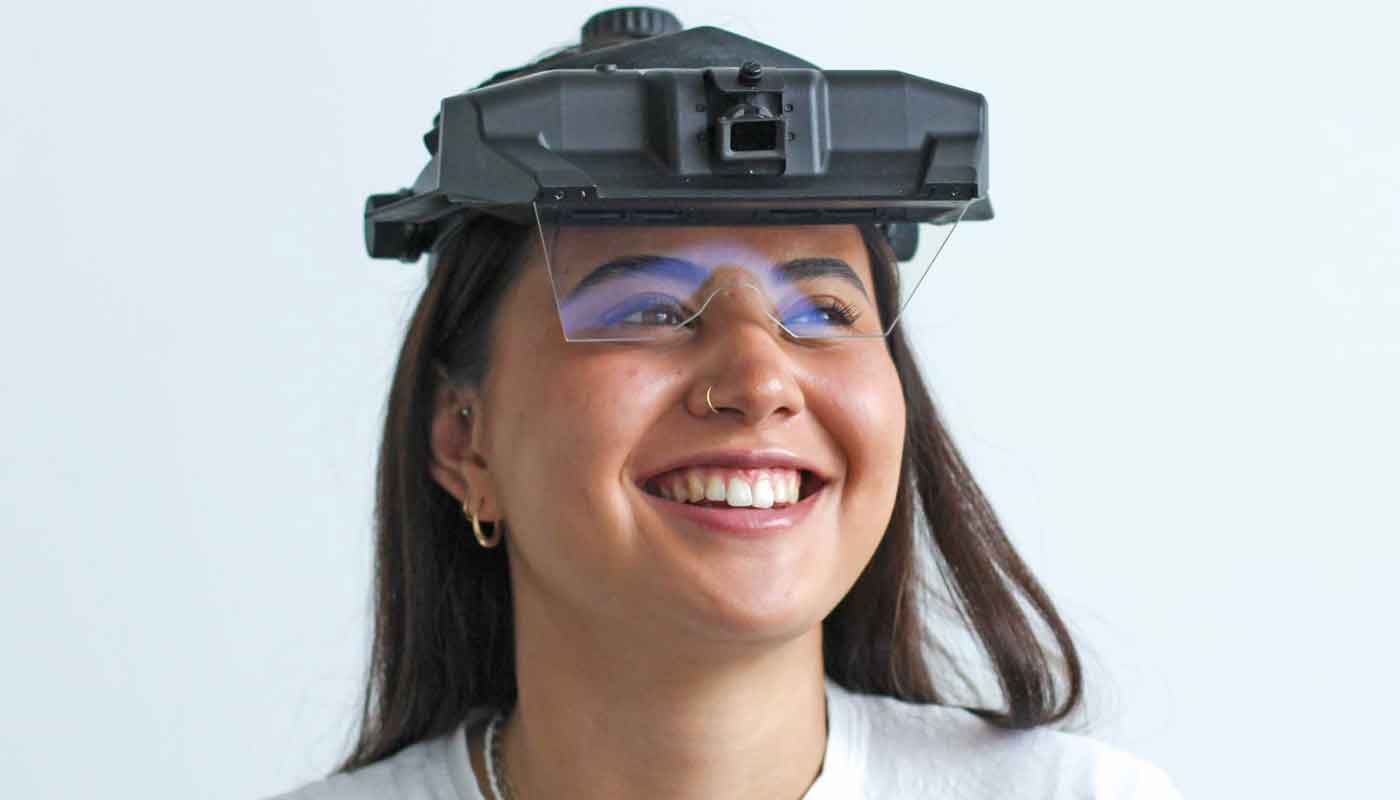

EyeLink 3
250/500/1000 Hz Monocular or Binocular Head Free-to-Move
Precision (Artificial Eye)
EyeLink 1000 Plus
0.01° (Filter Off, 1000 Hz)
EyeLink Portable Duo
0.01° (Filter Off, 1000 Hz)
EyeLink 3
0.06° (Filter Off, 1000 Hz)
Accuracy
EyeLink 1000 Plus
0.25°-0.5°
EyeLink Portable Duo
0.25°-0.5°
EyeLink 3
0.5°
Mounting Options
EyeLink 1000 Plus
Desktop Mount
臂式
塔式
Primate Mount
Long Range Mount (fMRI, MEG)
EyeLink Portable Duo
Laptop Mount (Included)
Tripod Mount (Included)
EyeLink 3
Head-Mounted Wearable Unit
Trackable Range
EyeLink 1000 Plus
Desktop Mount – 32ºx 25º
Arm Mount – 32º x 25º
Tower Mount – 60º x 40º
Primate Mount – 60º x 40º
Long Range Mount – 32º x 25º
EyeLink Portable Duo
Laptop & Tripod Mount – 32º X 25º
EyeLink 3
40° × 25° (Without Head Movements)
70° × 50° (With Head Movements)
Weight
EyeLink 1000 Plus
EyeLink 1000 Plus with Desktop Mount
Approximately – 2.1 kg
Minimal Setup (Host PC and Eye tracker) – 7.0 kg
EyeLink Duo
EyeLink Portable Duo and Laptop Mount – Approximately 1 kg
Host PC and Eye Tracker – 3.7 kg
EyeLink 3
Wearable Unit – 480 g Including Headband (620 g with USB cable)
Dimensions (WxHxD)
EyeLink 1000 Plus
Approx. 29 cm x 18 cm x 9 cm with
Desktop Mount
EyeLink Portable Duo
21 cm x 4.5 cm x 11 cm
EyeLink 3
Wearable Unit – 240 mm × 95 mm × 260 mm
Marker 120 – 160 mm × 25 mm × 44 mm, Excluding Cable and Mount
Marker 240 – 280 mm × 52 mm × 100 mm, Excluding Cable and Mount
MRI / MEG Tracking
EyeLink 1000 Plus
Yes – with Long Range Mount
EyeLink Portable Duo
Not Available
EyeLink 3
Not Available
Analog Voltage Output
EyeLink 1000 Plus
Yes – with Analog Output option
EyeLink Portable Duo
Not Applicable
EyeLink 3
Not Applicable
Participant Age Range
EyeLink 1000 Plus
All Ages – Infants Through to Adults (with Appropriate Hardware Components)
EyeLink Portable Duo
Older Infants to Adults
EyeLink 3
Children to Adults
Allowable Head Movement in Remote Mode
EyeLink 1000 Plus
35 cm Horizontal X 35 cm Vertical at 60 cm
40 cm Horizontal X 40 cm Vertical at 70 cm
EyeLink Portable Duo
20 cm Horizontal X 20 cm Vertical at 52 cm
EyeLink 3
Not Applicable
Optimal Camera-Eye Distance
EyeLink 1000 Plus
40 – 70 cm in Head-Stabilized and Remote Modes
60 – 150 cm in Long Range Mount
EyeLink Portable Duo
42 – 62 cm in All Modes
EyeLink 3
65 mm – 85 mm Fixed Distance
Travel Case, Wheeled Laptop Bag
EyeLink 1000 Plus
Not Applicable
EyeLink Portable Duo
Included
EyeLink 3
Not Applicable
Lightweight Head Support
EyeLink 1000 Plus
Available for Purchase
EyeLink Portable Duo
Included
EyeLink 3
Not Applicable
Camera Interface
EyeLink 1000 Plus
Gigabit Ethernet
EyeLink Portable Duo
USB 3.0
EyeLink 3
USB 3.0
Power Requirements
EyeLink 1000 Plus
12 V, 2000 mA (from External Power Supply)
EyeLink Portable Duo
5.0 V, 1800 mA USB Powered
EyeLink 3
Wearable Unit – 4.5 – 5.5 V, 0.9 A from USB 3.x Port on Host Computer
Marker 120 – 4.5 – 5.5 V, 500 mA from USB 2 or 3 Port or Power Adapter
Marker 240 – 4.2 – 5.5 V, 750 mA from USB 3 or Charging Port or Power Adapter
Eye Tracker Enclosure
EyeLink 1000 Plus
Camera (with Interchangeable Lens) and Illuminator Can Be Mounted Separately
EyeLink Portable Duo
Camera, Lens, and Illuminator Are Sealed Inside an Anodized Aluminum Enclosure with Acrylic Optical Window
EyeLink 3
Cameras and illuminator are Mounted in Light-Weight Headset
头部追踪
EyeLink 1000 Plus
No
EyeLink Portable Duo
No
EyeLink 3
Yes
Eye Video Recordings
EyeLink 1000 Plus
No
EyeLink Portable Duo
No
EyeLink 3
Yes (Up to 500 FPS)
